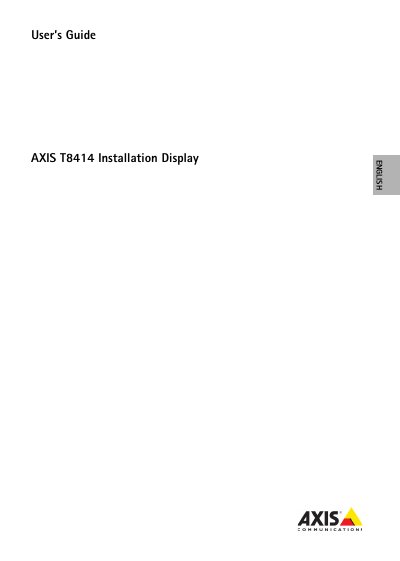

This document includes instructions for setting up and using the AXIS T8414 Installation Display. It also mentions legal considerations and electromagnetic compatibility.
The Axis T8414 Installation Display is a battery‑powered handheld device that simplifies the installation of Axis network and analog cameras. It provides live video, touchscreen controls, zoom, and snapshot functions to help installers set camera angle and focus on site.
The guide explains power‑up procedures, menu navigation, network testing, firmware upgrades, and technical specifications such as display size, battery life, and connector options.
| Display size | 3.5 inches |
|---|---|
| Resolution | 320x240 |
| Battery | 7.4 V Li‑ion 2200 mAh |
| Power input | 12 V DC ±10 %, 1 A |
| Memory | 128 MB RAM (16 MB for snapshots) |
| Operating temperature | 0 – 50 °C (32 – 122 °F) |
| Dimensions | 170 × 99 × 38 mm |
| Weight | 450 g (0.99 lb) |
The device provides up to 3 hours of operation without PoE, or 2 hours when PoE is active.
It includes a BNC video‑in connector, RJ‑45 PoE Ethernet, CAT‑5, USB 2.0, a micro‑SD slot, and a power‑adapter input.
