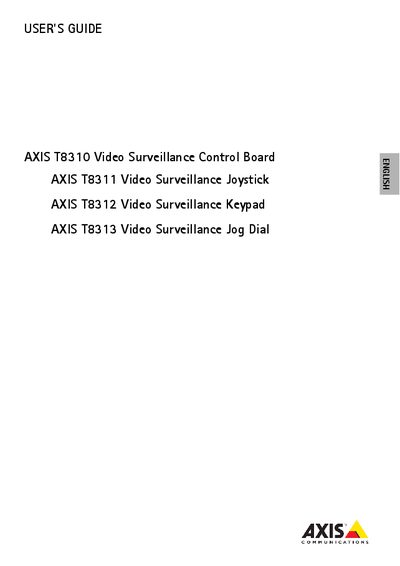

This document provides instructions on how to use AXIS T8310 Video Surveillance Control Board, AXIS T8311 Video Surveillance Joystick, AXIS T8312 Video Surveillance Keypad, and AXIS T8313 Video Surveillance Jog Dial. It also reminds users to check local laws before using the product for surveillance purposes. Additionally, it discusses the electromagnetic compatibility requirements of the equipment.
This guide provides instructions for installing and using the Axis T8310 Video Surveillance Control Board together with the T8311 joystick, T8312 keypad, and T8313 jog dial. All units are powered via USB and can be used separately or combined as a single workstation.
The document includes hardware overview, package contents, installation steps, troubleshooting tips, technical specifications, regulatory approvals, and support information. It also outlines system requirements and compliance with EMC, RoHS, and WEEE directives.
| Deflection | Square delimiter |
|---|---|
| Pan/Tilt (XY) | +15° with central return spring |
| Zoom | +25° with central return spring |
| Application defined hotkeys (T8311) | 6 |
| Application defined hotkeys (T8312) | 10 (5 LED‑backlit) |
| Casing | Polycarbonate ABS |
| Interface | USB 1.1/2.0 compliant |
| System requirements | Windows 7, Vista, XP, 2000, 2003 Server; USB 2.0 port; Axis Camera Station or similar |
| Power | Via USB interface |
| Dimensions (T8311) | 109 x 182 x 181 mm |
| Weight (T8311) | 730 g (1.6 lb) |
The system must run Windows 7, Vista, XP, 2000 or 2003 Server, have a USB 2.0 port, and use Axis Camera Station or similar supporting software.
The T8311 measures 109 × 182 × 181 mm (4.3 × 7.2 × 7.1 in).
