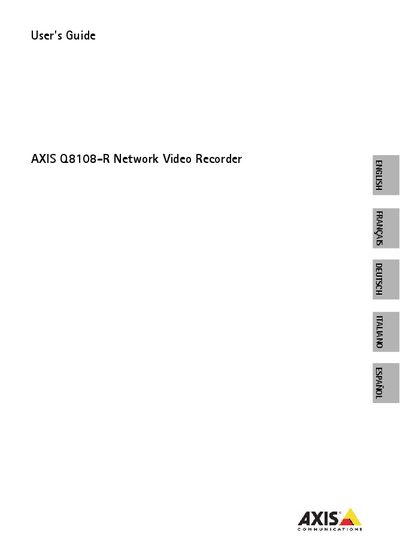

This document includes instructions for installing the AXIS Q8108-R Network Video Recorder.
This user guide covers the installation of the Axis Q8108-R Network Video Recorder, including mounting, cable routing, and power requirements. It also describes the hardware layout, connector types, and I/O pin assignments.
Additional sections address legal considerations, RoHS/WEEE compliance, LED indicator meanings, and detailed technical specifications such as dimensions, power supply options, and PoE capabilities.
| Dimensions | 193.6 mm (7.6 in) |
|---|---|
| Power supply options | 12 V DC (10 A) or 24 V DC (5 A) |
| Maximum PoE load per group | 16 W |
| Number of PoE ports | 8 RJ‑45 PoE connectors |
| Maximum I/O input voltage | +30 V |
| Network port | 1 Gbit Ethernet |
The I/O inputs can accept a maximum voltage of +30 V.
