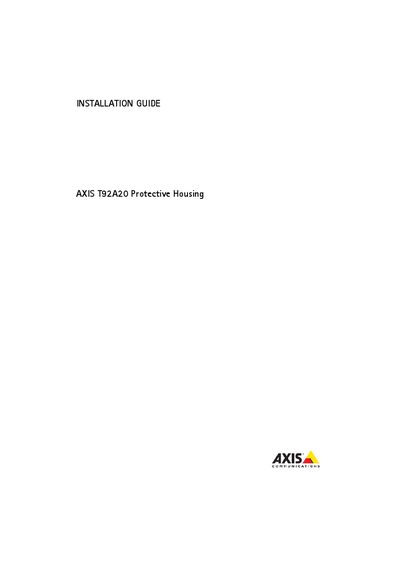

This document describes the installation of AXIS T92A20 Protective Housing, including steps such as installing the bracket, installing the camera, connecting power and network cables
This guide provides step‑by‑step instructions for installing the Axis T92A20 protective housing and a compatible Axis network camera. It starts with checking the package contents, then shows how to mount the wall bracket, install the camera and spacers, and connect power and network cables.
Safety warnings and recommended tools are listed, and the guide includes wiring diagrams for the various supported camera models. Final steps cover routing cables, connecting power to the housing, and completing the installation.
| Power supply | 12 V High PoE splitter (pre‑installed) |
|---|---|
| RJ45 patch cable length | 0.5 m |
You need a flat‑head screwdriver, a Phillips screwdriver, and a small (2 mm) flat‑head screwdriver.
Use one spacer for AXIS P1311, AXIS 1755, AXIS 221/223M; use two spacers for AXIS 210/210A and AXIS 211/211A/211M/211W.
The pre‑installed red (+) and black (GND) wires are connected to the camera’s terminal connector, and the RJ45 patch cable is plugged into the Data Out connector of the High PoE splitter.
