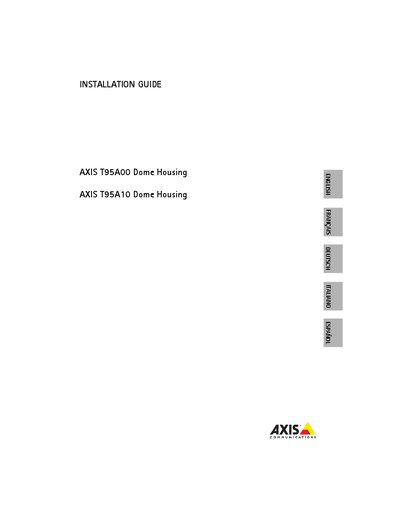

Axis T95A00/T95A10 Dome Housing Installation Guide

This document is the installation guide for AXIS T95A00/T95A10 Dome Housing, which introduces the installation method, precautions and other content.

Brand: AXIS
Document type: Installation Guide
Language: English
Pages: 83
File format: PDF
File size: 10.5 MB
Published: 01 June, 2012
Updated: 01 October, 2023
MD5 checksum: A457A261CB7B941F0F1E6D89C50A6AC1
PDF: Axis T95A00/T95A10 Dome Housing Installation Guide PDF

About this manual

The guide provides safety instructions and a list of required tools and parts for installing the Axis T95A00/T95A10 dome housing. It emphasizes that only qualified personnel should perform the work, power must be disconnected, and original spare parts must be used.

The document details the package contents, wiring connections for various Axis camera models, and step‑by‑step mounting procedures, including fastening the dome, connecting power cables (12 V DC or 24 V AC/DC), and preparing cable gland plates.

What's inside

Package Contents
Safety Rules
Tools / Parts not included
Technical Specifications
Installation Steps
Power Connections
Mounting Bracket

Specifications

Power output (T95A00/T95A10)	12 V DC
Power input (T95A00)	24 V DC
Power input (T95A10)	24 V AC
Cable gland sizes	M20, M16, M12

Frequently asked questions

Which Axis camera models are compatible with the T95A00/T95A10 dome housing?

The housing supports AXIS 213 PTZ, AXIS 214 PTZ, AXIS 215 PTZ, AXIS 231D+/232D+, and AXIS 233D cameras.
