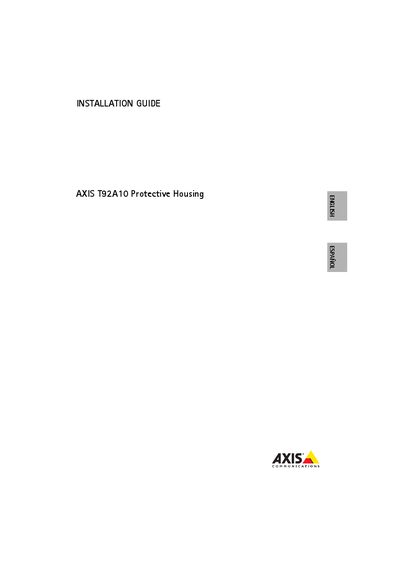

Axis T92A10 Protective Housing Installation Guide

This document provides instructions for the installation of the AXIS T92A10 Protective Housing and the supported Axis network camera models. It also includes information about the package contents.

Brand: AXIS
Category: Other
Document type: Installation Guide
Language: English
Pages: 19
File format: PDF
File size: 3.6 MB
Published: 01 June, 2012
Updated: 29 September, 2023
MD5 checksum: 758599681C6590CC9D826013BF9B91CE
PDF: Axis T92A10 Protective Housing Installation Guide PDF

About this manual

This guide provides step‑by‑step instructions for installing the Axis T92A10 protective housing for Axis network cameras. It lists the package contents, required tools, and the supported camera models.

The document details bracket installation, camera positioning with spacers, power‑cable connection, cable routing, and final verification steps, including recommended cable types and maximum cable‑run distances.

What's inside

Package contents
Install the bracket
Install the camera in the housing
Connect the power cable
Route the cables to the housing
Finalization of the installation
Cable distance recommendations

Specifications

Power supply	Built‑in 12V DC power supply
Supported camera models	AXIS P1311, AXIS 01755, AXIS 210/210A, AXIS 211/211A/211M/211W, AXIS 221, AXIS 223M

Frequently asked questions

What tools are required for installing the Axis T92A10 housing?

A Phillips screwdriver and a flat‑head screwdriver are needed, as listed in the package contents.

How many spacers should be used for an AXIS 211 camera?

Two spacers are required for AXIS 211, AXIS 211A, AXIS 211M or AXIS 211W.

What type of cable is recommended for the installation?

A Shielded Twisted Pair (STP) cable is recommended for connecting the camera to the housing.

Download PDF (3.6 MB)
