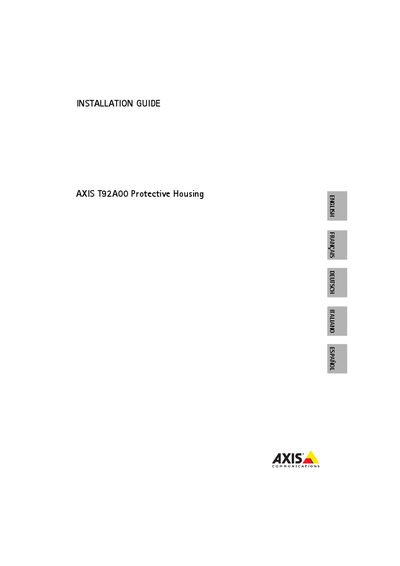

Axis T92A00 Protective Housing Installation Guide

This document is an installation guide for AXIS T92A00 Protective Housing, including installation steps and supported camera models.

Brand: AXIS
Category: Other device
Document type: Installation Guide
Language: English
Pages: 51
File format: PDF
File size: 9.2 MB
Published: 01 June, 2012
Updated: 28 September, 2023
MD5 checksum: 3761762B41C4B500058B0BDE1F1B1411
PDF: Axis T92A00 Protective Housing Installation Guide PDF

About this manual

This guide provides step‑by‑step instructions to install the Axis T92A00 protective housing for supported Axis network cameras. It begins with checking the package contents, then details mounting the wall or ceiling bracket, installing the camera inside the housing, and routing power and network cables.

Safety notes advise that high‑voltage connections be performed by an authorized electrician and that local regulations be observed. The guide also lists the required tools and optional accessories such as brackets and RJ45 crimp tools.

What's inside

Package contents
Install the bracket
Install the camera in the housing
Connect the power cable to the camera
Route the cables to the housing
Connect the power cable to the housing
Complete the installation

Specifications

Input voltage	100-240V AC
Power supply	Pre‑installed
Supported camera models	AXIS P1311, AXIS 01755, AXIS 210/210A, AXIS 211/211A/211M/211W, AXIS 221, AXIS 223M

Frequently asked questions

What voltage range is required for the AXIS T92A00 housing?

The housing can be powered with a 100‑240 V AC power cable.

How many spacers are needed for an AXIS 211 camera?

Two spacers should be used with an AXIS 211, 211A, 211M or 211W camera.

Which tools are required for installing the AXIS T92A00 housing?

A Phillips screwdriver, a flat‑head screwdriver, a small (2 mm) flat‑head screwdriver and an RJ45 crimp tool are needed.
