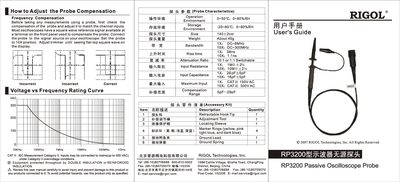

This guide explains how to safely set up and use the Rigol RP3200 passive oscilloscope probe. It includes safety warnings, storage compensation checks, and instructions for connecting the probe to an oscilloscope for frequency compensation.
The manual also describes the probe's accessories—such as the retractable hook tip, adjustment tool, locating sleeve, marker rings, ground lead, and ground spring—and how to adjust attenuation and compensation settings for accurate measurements.
| Attenuation Ratio | 10:1 or 1:1 (switchable) |
|---|---|
| Input Capacitance (1X) | 26 pF + 5 pF |
| Bandwidth (10X) | DC‑300 MHz |
| Rise Time (10X) | 1.1 ns |
| Compensation Range | 5 pF – 29 pF |
The probe provides a switchable attenuation ratio of 10:1 or 1:1.
