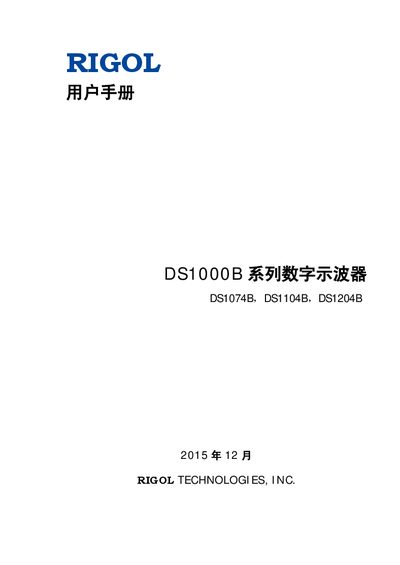

The Rigol DS1000B series user manual provides safety guidelines, operation instructions, specifications and troubleshooting for the DS1074B, DS1104B and…
This manual introduces the Rigol DS1000B series digital oscilloscopes, covering three models (DS1074B, DS1104B, DS1204B). It describes the front‑panel layout, menu system, basic and advanced operation procedures, and provides example measurements.
Safety information, technical specifications, maintenance instructions, and a troubleshooting guide are included to help users operate the instrument safely and effectively. This manual is written in Chinese.
| Input coupling | DC, AC, GND |
|---|---|
| Input impedance | 1 MΩ ± 2.0 % |
| Input capacitance | 18 pF ± 3 pF |
| Maximum analog input voltage (CAT I) | 300 Vrms, 1000 Vpk |
| Maximum analog input voltage (CAT II) | 100 Vrms, 1000 Vpk |
| Number of analog channels | 4 |
| Channel bandwidth | DS1204B 200 MHz, DS1104B 100 MHz, DS1074B 70 MHz |
| Display size | 5.7‑inch (145 mm) TFT LCD |
| Power supply | 100‑240 VAC, 45‑440 Hz, CAT II |
| Power consumption | < 50 W |
| Dimensions (W×H×D) | 325 mm × 159 mm × 133 mm |
| Weight (without packaging) | 3 kg |
