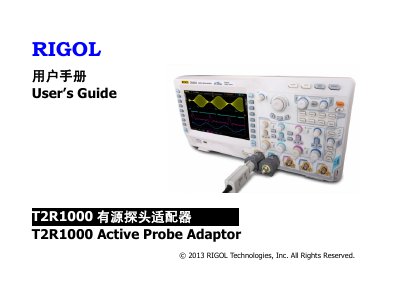

The RIGOL T2R1000 Active Probe Adapter user guide explains how to connect Tektronix TekProbe‑BNC probes to RIGOL DS6000, MSO4000/DS4000 oscilloscopes and…
The T2R1000 Active Probe Adapter converts a Tektronix TekProbe‑BNC level‑II probe to the RIGOL‑Probe interface, supplying power, calibration and DC‑offset adjustment. Connect the probe to the adapter, then plug the adapter into the analog input of a compatible RIGOL oscilloscope and select the probe model in the oscilloscope menu.
The adapter supports a bandwidth greater than 4 GHz, operates from ±5 V/±15 V supplies, and delivers up to 150 mA output current. It tolerates a maximum input voltage of 42 Vpk (30 Vrms) and works within 0 °C‑50 °C (operating) and –40 °C‑70 °C (non‑operating) temperature ranges. Physical dimensions are 60 × 33.7 × 29.5 mm and weight is 132 g with packaging. This manual is written in Chinese.
| Bandwidth | >4 GHz (T2R1000 only) |
|---|---|
| Power Supply Voltage | ±5 V, ±15 V |
| Maximum Output Current | 150 mA |
| DC Offset Range | <±1 V |
| Maximum Input Voltage | 42 Vpk, 30 Vrms |
| Operating Temperature | 0 °C‑50 °C |
| Non‑operating Temperature | -40 °C‑70 °C |
| Humidity | 95 %RH at 50 °C |
| Altitude Rating | up to 4000 m |
| Dimensions | 60 mm × 33.7 mm × 29.5 mm |
| Weight | 132 g (with packaging) |
Insert the TekProbe‑BNC probe into the T2R1000 adapter, then plug the adapter’s other end into the oscilloscope’s analog input that has a RIGOL‑Probe connector, and select the probe model in the oscilloscope menu.
It can handle up to 42 V peak (30 Vrms).
