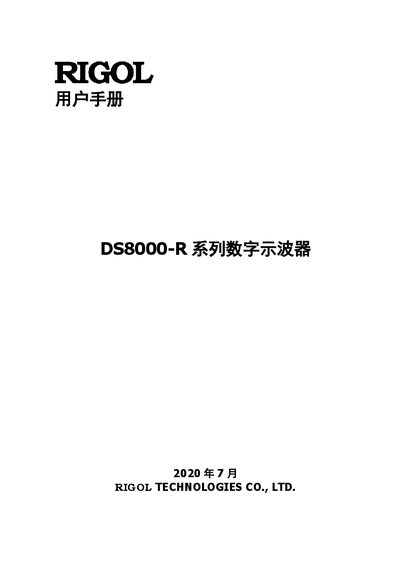

User manual for the RIGOL DS8000‑R digital oscilloscope covering safety, setup, operation and maintenance.
The RIGOL DS8000‑R series is a compact, rack‑mountable digital oscilloscope designed for industrial test systems. This manual provides safety guidelines, environmental requirements, and detailed operating instructions, including connection of power, display devices, and probes.
It also describes measurement categories, technical specifications such as bandwidth and sampling rate, maintenance procedures, and warranty information, helping users install, operate, and service the instrument safely and efficiently. This manual is written in Chinese.
| Analog bandwidth | 2 GHz (1 GHz model available) |
|---|---|
| Maximum real‑time sampling rate | 10 GSa/s |
| Number of analog channels | 4 analog + 1 EXT input |
| Storage depth | 500 Mpts (default) |
| Waveform capture rate | >600 000 waveforms per second |
| Operating temperature (single unit) | -40 °C to +50 °C |
| Power input | 100‑240 V, 45‑440 Hz |
The oscilloscope can be powered from an AC source of 100‑240 V at 45‑440 Hz.
Turn off the instrument, disconnect the power, remove the fuse holder with a small screwdriver, take out the old fuse, insert a new fuse of the specified type (AC 250 V, T3.15 A, 5.2 mm×20 mm), and reinstall the holder.
Connect the probe ground lead to the instrument’s ground terminal; never connect the probe ground to a high‑voltage point, and ensure the probe is properly compensated before measurement.
