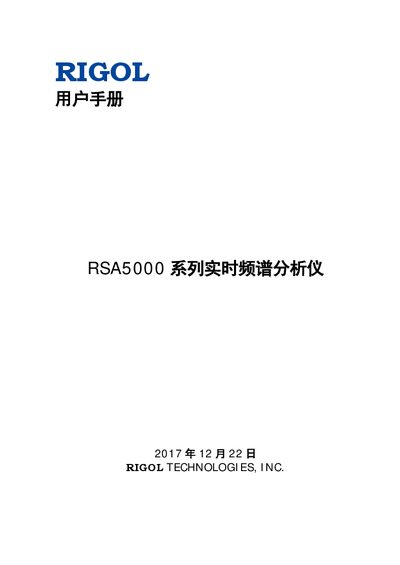

The RIGOL RSA5000 Series real‑time spectrum analyzer user manual provides safety, operation, and maintenance instructions.
This manual covers safety requirements, proper ventilation, and handling precautions for the RSA5000 series spectrum analyzer. It also details power specifications, connector functions, and optional accessories such as OCXO and external reference inputs.
Operational guidance includes quick start procedures, front‑panel key functions, system settings, remote control methods, and troubleshooting steps. Appendices list accessories, warranty information, and an index for easy reference. This manual is written in Chinese.
| Frequency range | 9 kHz – 6.5 GHz |
|---|---|
| Resolution bandwidth (RBW) minimum | 1 Hz |
| Real‑time analysis bandwidth | 40 MHz |
| Display size | 10.1‑inch multi‑touch LCD |
| Power consumption (max) | 95 W |
| AC power input | 100‑240 V, 45‑440 Hz |
| Fuse specification | AC 250 V, T3.15 A |
| Communication interfaces | USB, LAN, HDMI |
The RSA5000 accepts an AC input of 100‑240 V at 45‑440 Hz.
Select System → Calibration Settings → Immediate Calibration to run the internal calibration source.
The minimum resolution bandwidth (RBW) is 1 Hz.
