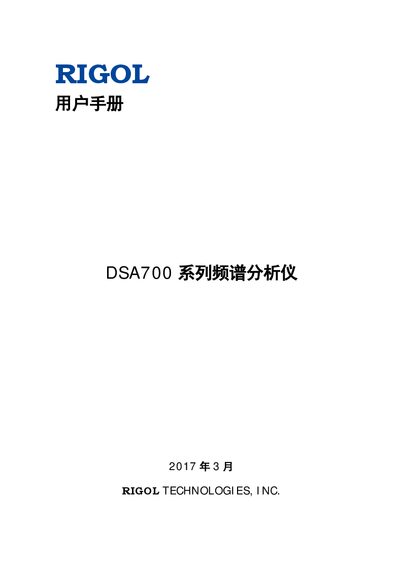

The Rigol DSA700 series spectrum analyzer user manual provides safety guidelines, setup instructions, operation details, and specifications.
This manual covers safety requirements, proper handling, and environmental considerations for the DSA700 portable spectrum analyzer. It includes instructions for connecting power, grounding, and using accessories such as probes and batteries.
The document also describes the front‑panel controls, remote‑control options, troubleshooting messages, and detailed performance specifications, along with warranty and service information. This manual is written in Chinese.
| Maximum Frequency | 500 MHz / 1 GHz |
|---|---|
| Display | 8‑inch LCD, 800×480 pixels |
| Power Supply | 100‑240 V, 45‑440 Hz |
| Maximum Power Consumption | ≤ 50 W |
| Fuse Rating | 250 V, T2A |
The DSA700 works with an AC supply of 100‑240 V and 45‑440 Hz.
Turn off the instrument, then wipe the screen with a soft cloth dampened with mild detergent or water, avoiding scratches.
No, the manual advises not to operate the DSA700 in humid conditions to avoid short circuits and electric shock.
Refer to Chapter 4 "故障处理与消息列表" for a list of common error messages and recommended actions.
