RIGOL DS1000E/DS1000D series digital oscilloscopes offer up to 100 MHz bandwidth, dual analog channels, 16‑channel logic analyzer and extensive measurement…

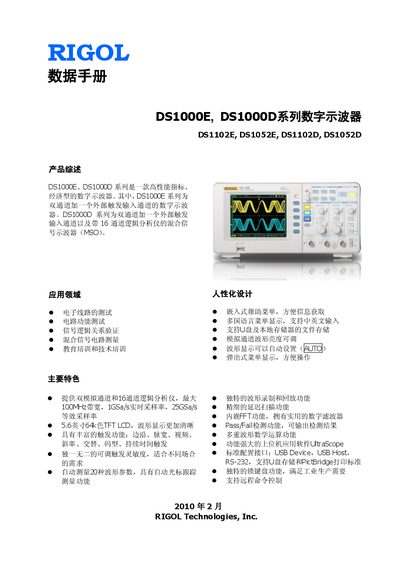

The DS1000E/DS1000D series are high‑performance, cost‑effective digital oscilloscopes. The DS1000E provides two analog channels plus an external trigger input, while the DS1000D adds a 16‑channel logic analyzer for mixed‑signal testing. Features include a 5.7‑inch 64 k‑color TFT display, rich trigger options, automatic measurements, waveform recording, FFT, and Pass/Fail testing.
The leaf‑let lists technical specifications such as a 100 MHz bandwidth, 1 GSa/s real‑time sampling, USB Device/Host, RS‑232 interfaces, fan‑forced cooling, and a compact chassis weighing 2.3 kg (without packaging). Warranty information and ordering accessories are also provided. This manual is written in Chinese.
| Display type | 145 mm (5.7‑inch) TFT LCD |
|---|---|
| Resolution | 320 × RGB× 234 pixels |
| Color depth | 64 k colors |
| Contrast (typical) | 150 : 1 |
| Backlight intensity (typical) | 300 nit |
| Probe compensation output voltage (typical) | ≈3 Vpp |
| Compensation frequency (typical) | 1 kHz |
| Power supply voltage | 100‑240 VAC RMS, 45‑440 Hz |
| Power consumption | < 50 W |
| Fuse | 2 A, T‑type, 250 V |
| Operating temperature range | 10 °C ~ +40 °C |
| Storage temperature range | -20 °C ~ +60 °C |
| Cooling method | Fan‑forced cooling |
| Humidity (operating) | ≤ 90 % RH (≤ 35 °C) |
| Maximum operating altitude | 3 000 m |
| Dimensions (W × H × D) | 303 mm × 154 mm × 133 mm |
| Weight (without packaging) | 2.3 kg |
| IP protection | IP2X |
| Standard interfaces | USB Device, USB Host, RS‑232, USB storage, PictBridge |
The DS1000 series provides a maximum bandwidth of 100 MHz.
It includes USB Device, USB Host, RS‑232, and supports USB storage and PictBridge printing.
