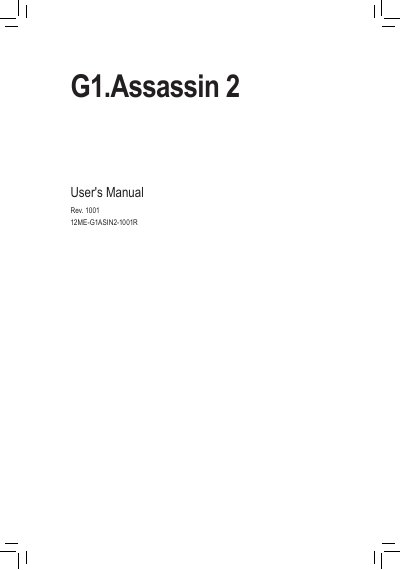

Gigabyte G1.Assassin 2 Motherboard User Manual

This is the User's Manual for GIGABYTE G1.Assassin 2 motherboard. It details the features and usage of the motherboard.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 112
File format: PDF
File size: 37.3 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: G1.Assassin 2
MD5 checksum: DDFC1DD1A45D67782BC4BE335C4728B8
PDF: Gigabyte G1.Assassin 2 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the Gigabyte G1.Assassin 2 motherboard, including hardware installation, BIOS settings, driver installation, and unique features such as Xpress Recovery and Cloud OC.

It also contains detailed specifications, wiring diagrams, and troubleshooting guidance, plus contact information for global support centers.

What's inside

Box Contents
Motherboard Layout
Motherboard Block Diagram
Hardware Installation
BIOS Setup
Drivers Installation
Unique Features
Appendix

Specifications

CPU Support	Intel Core i7 processors (LGA2011)
Chipset	Intel X79 Express
Memory Slots	4 DDR3 DIMM sockets, up to 32 GB
Supported Memory Speed	DDR3 2133/1866/1600/1333/1066 MHz
Audio Codec	Creative CA20K2
LAN Controller	Bigfoot Killer E2100 (10/100/1000 Mbit)
Additional LAN PHY	Marvell 88E1118R
RAID Support	RAID 0, 1, 5, 10

Frequently asked questions

What CPU socket does the G1.Assassin 2 motherboard use?

The motherboard uses an LGA2011 socket for Intel Core i7 processors.

What type of memory modules are supported?

The board supports DDR3 modules up to 2133 MHz, non‑ECC, and XMP‑compatible memory.
