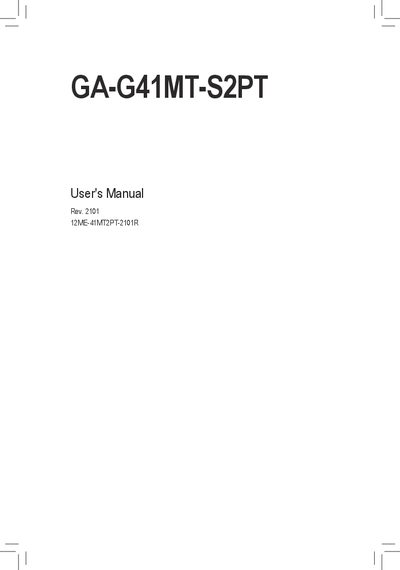

This is the user manual for GA-G41MT-S2PT motherboard, which introduces hardware installation, firmware upgrade and other contents.
This manual covers safe hardware installation, BIOS configuration, and driver installation for the Gigabyte GA‑G41MT‑S2PT motherboard. It includes detailed diagrams, connector layouts, and regulatory compliance information.
Additional sections describe product specifications, supported CPUs, memory configurations, and contact information for technical support.
| Memory Slots | 2 DDR3 DIMM sockets, up to 8 GB total |
|---|---|
| Maximum Memory Speed | DDR3 1333/1066/800 MHz |
| SATA Connectors | 4 × SATA 3 Gb/s ports |
| USB Ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 internal headers) |
| LAN | 1 × Realtek/Atheros GbE LAN (10/100/1000 Mbit) |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI slots |
It complies with FCC Part 15, Subpart B, Class B Digital Device requirements.
The board provides up to eight USB 2.0/1.1 ports—four on the rear panel and four via internal headers.
