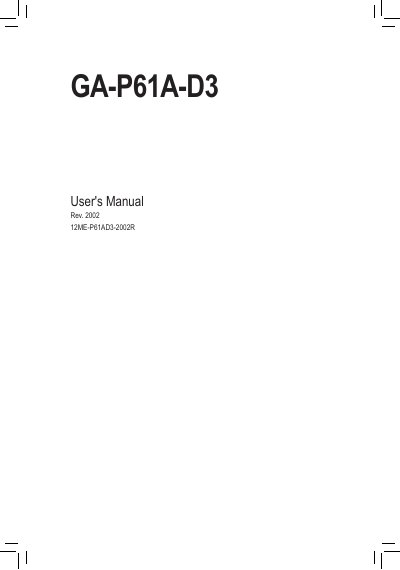

GA-P61A-D3 User's Manual, introduces the hardware installation, BIOS settings, driver installation, etc.
This manual covers hardware installation steps such as CPU, memory, and expansion card installation, along with detailed safety precautions and ESD handling. It also includes a complete motherboard layout, block diagram, and connector descriptions.
Later sections guide users through BIOS configuration, driver installation, and additional utilities. Appendices provide SATA configuration tips and regulatory information, while contact details for Gigabyte support are listed at the end.
| CPU Socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron (LGA1155) |
| Chipset | Intel H61 Express |
| Memory Slots | 2 DDR3 DIMM slots, up to 16 GB |
| LAN | 1 x Realtek/Atheros GbE (10/100/1000 Mbit) |
| SATA Ports | 4 x SATA 3 Gb/s, 2 x SATA 6 Gb/s |
| Audio Codec | Realtek/VIA HD audio, 2/4/5.1/7.1‑channel |
| Form Factor | ATX, 30.5 cm x 19.0 cm |
The revision number is printed on the board as "REV: X.X" (e.g., "REV: 1.0").
It uses an LGA1155 socket for compatible Intel processors.
The board provides four SATA 3 Gb/s ports and two SATA 6 Gb/s ports.
Up to 16 GB of DDR3 memory can be installed across the two DIMM slots.
