GA-G41MT-S2 is a motherboard with various product specifications and features. It supports the installation of CPU, memory, and expansion cards, making it suitable for various applications.

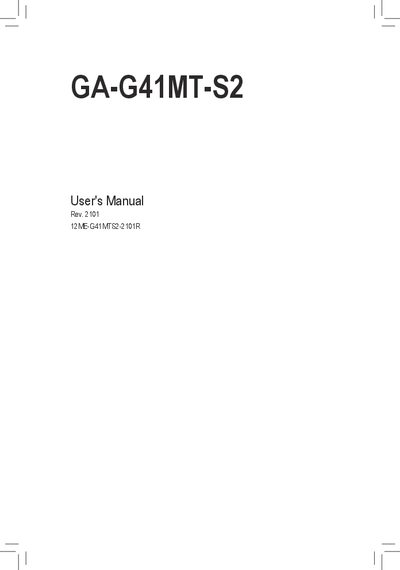

This manual guides users through the safe installation and configuration of the Gigabyte GA‑G41MT‑S2 motherboard. It includes safety precautions, hardware installation procedures, and detailed diagrams of the board layout.
Key sections cover BIOS setup, driver installation, product specifications (CPU support, memory, chipset, connectors, and I/O), and regulatory statements. The document also lists the box contents and provides contact information for technical support.
| Front Side Bus | 1333/1066/800 MHz |
|---|---|
| North Bridge Chipset | Intel® G41 Express |
| South Bridge Chipset | Intel ICH |
| Memory Slots | 2 x 1.5 V DDR3 DIMM, up to 8 GB |
| LAN Interface | 1× Atheros/Realtek GbE (10/100/1000 Mbit) |
| PCI Express Slots | 1× x16, 2× x1 |
| SATA Connectors | 4× SATA 3 Gb/s |
| USB Ports | Up to 8 USB 2.0/1.1 (4 rear, 4 via headers) |
Unplug the AC power cord, avoid static discharge by using an ESD wrist strap or touching metal, work on an antistatic surface, and keep screws away from the circuitry.
The board supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium, and Celeron processors in the LGA775 package.
It provides up to eight USB 2.0/1.1 ports—four on the rear panel and four via internal headers.
The motherboard supports front side bus speeds of 1333 MHz, 1066 MHz, or 800 MHz.
