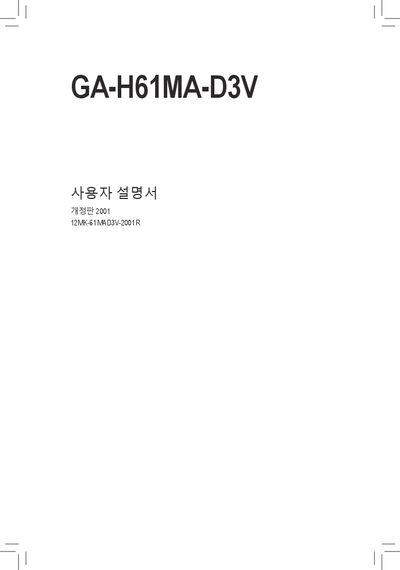

Gigabyte GA-H61MA-D3V Motherboard User Manual

GA-H61MA-D3V User Manual, introduce the hardware installation and BIOS setup method of the motherboard

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Korean
Pages: 44
File format: PDF
File size: 21.1 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-H61MA-D3V
MD5 checksum: 8AC8E64BCE6008FAEEFC30BC274D7683
PDF: Gigabyte GA-H61MA-D3V Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the Gigabyte GA-H61MA-D3V Micro‑ATX motherboard. It includes hardware installation steps, BIOS configuration, driver installation, and an appendix with additional resources.

The document also lists detailed specifications such as supported CPUs, memory types, storage interfaces, and I/O ports, helping users verify compatibility and optimize system performance. This manual is written in Korean.

What's inside

Motherboard Layout
Motherboard Block Diagram
Hardware Installation
CPU Installation
Memory Installation
Expansion Card Installation
BIOS Setup
Driver Installation
Appendix

Specifications

CPU socket	LGA1155
Chipset	Intel H61 Express
Supported memory speed	DDR3 1333/1066/800 MHz
SATA 3 Gb/s ports	4
SATA 6 Gb/s ports	2
USB 2.0/1.1 ports	8 (4 rear, 4 via internal headers)
USB 3.0/2.0 ports	2 (rear)
Form factor	Micro ATX (24.4 cm × 17.4 cm)

Frequently asked questions

What CPU socket does the GA‑H61MA‑D3V motherboard use?

It uses an LGA1155 socket.

How many SATA 6 Gb/s ports are available on this board?

The board provides two SATA 6 Gb/s ports.

How many USB 2.0/1.1 ports does the motherboard have?

It has eight USB 2.0/1.1 ports (four on the rear panel and four via internal headers).
