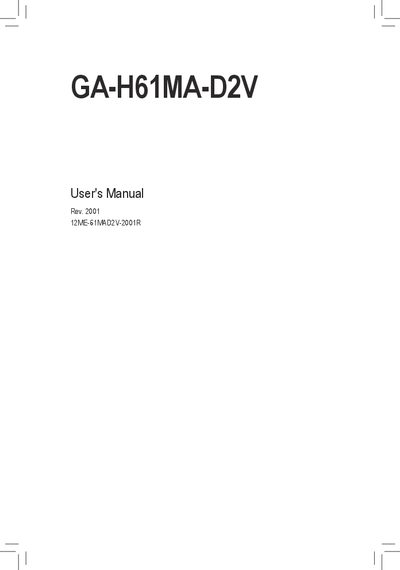

GA-H61MA-D2V User's Manual, introducing motherboard hardware installation, BIOS settings and other information
This manual explains how to install and configure the Gigabyte GA-H61MA-D2V motherboard. It covers safety precautions, CPU and memory installation, expansion cards, and connector descriptions.
Additional sections detail BIOS setup, driver installation, regulatory information, and contact details for technical support. The document also lists the full technical specifications of the board.
| Chipset | Intel® H61 Express |
|---|---|
| Memory Slots | 2 x DDR3 DIMM (up to 16 GB) |
| Onboard Graphics Ports | 1 x D‑Sub, 1 x DVI‑D (max 1920×1200) |
| Audio Codec | Realtek/VIA HD Audio (2/4/5.1/7.1‑channel) |
| LAN | Realtek/Atheros GbE (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCIe x16, 3 x PCIe x1 |
| SATA Ports | 4 x SATA 3 Gb/s |
| USB Ports | 8 x USB 2.0/1.1 (4 back, 4 internal) + 2 x USB 3.0/2.0 (back) |
It has two DDR3 DIMM sockets that together support up to 16 GB of system memory.
Two USB 3.0/2.0 ports are provided on the back panel.
