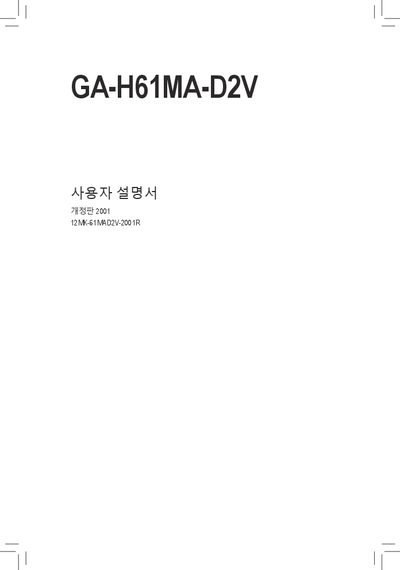

Gigabyte GA-H61MA-D2V Motherboard User Manual

GA-H61MA-D2V is a motherboard product with interchangeable versions and modified features. This motherboard has various hardware installation options and BIOS settings, suitable for various computer configuration needs.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Korean
Pages: 40
File format: PDF
File size: 14.8 MB
Published: 11 May, 2012
Updated: 29 September, 2023
Model: GA-H61MA-D2V
MD5 checksum: 687E21AEFCA4EE3FEFD23C1E684E7AC9
PDF: Gigabyte GA-H61MA-D2V Motherboard User Manual PDF

About this manual

This manual covers the GA-H61MA-D2V ATX motherboard, detailing hardware installation steps, BIOS configuration, and driver installation. It includes safety warnings, component layout diagrams, and specifications for CPU, memory, and peripherals.

The document also provides troubleshooting guidance, connector descriptions, and contact information for technical support, helping users set up and maintain the motherboard safely and efficiently. This manual is written in Korean.

What's inside

Motherboard Layout
Block Diagram
Hardware Installation
CPU Installation
Memory Installation
Expansion Card Installation
Rear Panel Connectors
Internal Connectors
BIOS Setup
Driver Installation

Specifications

CPU socket	LGA1155
Chipset	Intel H61 Express
Memory slots	2 DDR3 DIMM slots
SATA ports	4 SATA 3Gb/s connectors
LAN	Realtek/Atheros GbE 10/100/1000 Mbit

Frequently asked questions

What CPU socket does the GA-H61MA-D2V motherboard use?

It uses an LGA1155 socket.

How many USB 3.0 ports are provided on the board?

The motherboard provides two USB 3.0/2.0 ports on the rear panel.
