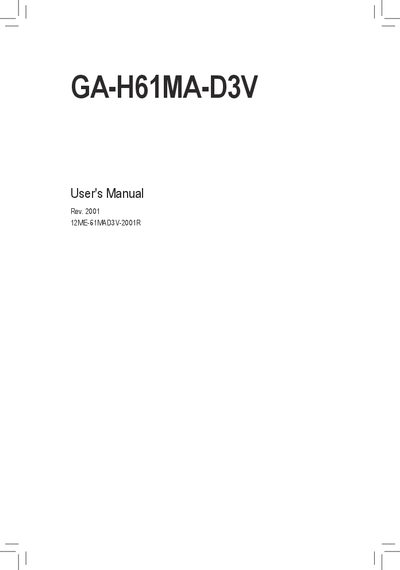

This is the user manual for GA-H61MA-D3V motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD. It introduces the hardware installation and usage methods of the motherboard.
This manual guides users through the safe installation of the GA-H61MA-D3V motherboard, covering hardware setup, BIOS configuration, driver installation, and troubleshooting. It also includes regulatory statements and contact information for technical support.
Key sections include Hardware Installation, BIOS Setup, Drivers Installation, Product Specifications, and an Appendix with additional resources. Detailed diagrams and connector layouts help users correctly connect components and configure system settings.
| CPU Support | Intel Core i7/i5/i3, Pentium, Celeron processors (LGA1155) |
|---|---|
| Chipset | Intel H61 Express Chipset |
| Memory Capacity | 2 DDR3 DIMM slots, up to 16 GB total |
| Memory Speed | DDR3 1333/1066/800 MHz |
| Integrated Graphics | 1× D‑Sub port, 1× DVI‑D port, max resolution 1920×1200 |
| LAN | 1× Realtek/Atheros GbE LAN (10/100/1000 Mbit) |
The board supports Intel Core i7, i5, i3, Pentium, and Celeron processors in the LGA1155 package.
