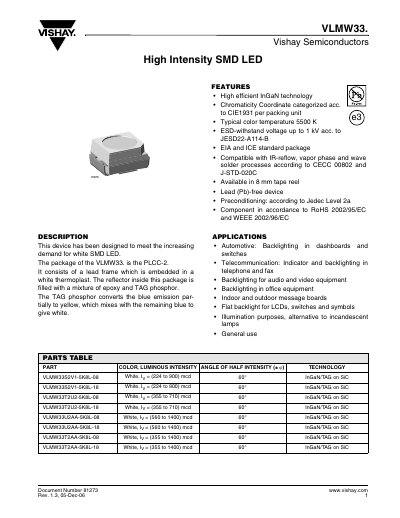

The product is VLMW33, a high intensity SMD LED with high efficient InGaN technology, typical color temperature of 5500K, ESD-withstand voltage up to 1kV, compatible with IR-reflow, vapor phase and wave solder processes, compatible with 8mm tape reel, Pb-free, in accordance with RoHS 2002/95/EC and WEEE 2002/96/EC standards
The VLMW33 series is a high‑intensity white SMD LED built with InGaN/TAG technology in a PLCC‑2 package. It offers high luminous intensity (224‑1400 mcd depending on part number), a typical color temperature of 5500 K, and RoHS‑compliant, lead‑free construction.
The LEDs are supplied on 8 mm tape reels, compatible with IR‑reflow, vapor‑phase and wave soldering. The datasheet includes absolute maximum ratings, optical and electrical characteristics, packaging dimensions, recommended soldering profiles, and storage guidelines to ensure reliable performance in automotive, telecommunications, backlighting, and illumination applications.
| Forward voltage (VF) at 20 mA | 3.7 V – 4.2 V |
|---|---|
| Reverse voltage (VR) | 5 V |
| Power dissipation (PV) | 127 mW |
| Junction temperature (Tj) max | 100 °C |
| Storage temperature range | -40 °C to +100 °C |
| Operating temperature range | -40 °C to +100 °C |
| Luminous intensity (VLMW33S2V1) | 224 – 900 mcd at 20 mA |
| Chromaticity coordinate x | 0.33 |
| Chromaticity coordinate y | 0.33 |
| Angle of half intensity | ± 60° |
Store the devices in a dry box at 10 °C to 30 °C with humidity ≤ 60 % RH; moisture‑sensitive devices should be kept sealed for up to 12 months.
The VLMW33 series can withstand a reverse voltage of up to 5 V.
They are supplied on an antistatic 8 mm tape reel, compatible with IR‑reflow, vapor‑phase and wave solder processes.
Typical forward voltage is between 3.7 V and 4.2 V at 20 mA.
