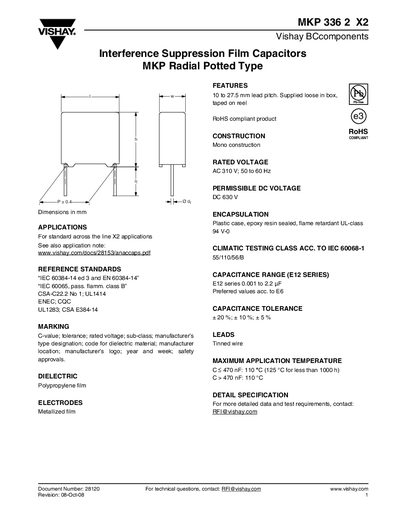

This document describes the features and applications of Vishay BCcomponents' MKP Radial Potted Type MKP 336 2 X2 interference suppression film capacitors.
The MKP 336 2 X2 series are radial potted film capacitors from Vishay BCcomponents. They feature polypropylene film dielectric and metallized film electrodes, with lead pitches ranging from 10 mm to 27.5 mm. The capacitors are RoHS‑compliant and supplied either loose in a box or taped on a reel.
The document provides detailed electrical ratings (AC 310 V, DC 630 V), temperature limits, capacitance ranges (0.001 µF to 2.2 µF), tolerance options (+5 % to +20 %), and packaging dimensions for various lead lengths and reel sizes.
| Lead pitch | 10.0 mm to 27.5 mm |
|---|---|
| Maximum application temperature | 110 °C (125 °C for <1000 h, C < 0.47 µF) |
| Rated voltage pulse slope | 100 V/µs at 485 Vdc |
The maximum application temperature is 110 °C (125 °C for less than 1000 h when C < 0.47 µF).
