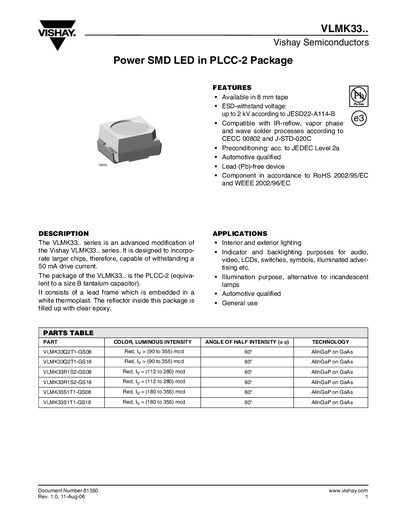

Vishay Semiconductors VLMK33.. is a power SMD LED in PLCC-2 package. It features ESD-withstand voltage and compatibility with various solder processes. It is suitable for interior and exterior lighting, indicator and backlighting purposes, as well as general illumination. The product is automotive qualified and lead (Pb)-free, complying with RoHS and WEEE directives.
The VLMK33 series is a power SMD LED in a PLCC‑2 package, designed for interior and exterior lighting, backlighting, and automotive applications. It offers up to 50 mA drive current, ESD‑withstand up to 2 kV, and is RoHS and lead‑free compliant.
The document includes absolute maximum ratings, optical and electrical characteristics, mechanical dimensions, tape‑and‑reel packaging details, and recommended lead‑free reflow soldering profiles. It also contains Vishay’s ozone‑depleting substances policy and legal disclaimer.
| Forward current (max) | 50 mA |
|---|---|
| Power dissipation | 130 mW |
| Junction temperature (max) | 125 °C |
| Operating temperature range | -40 °C to +100 °C |
| Reverse voltage | 5 V |
| Package dimensions (mm) | 3.5 × 1.75 × 0.9 |
The device can be driven up to 50 mA forward current.
The LED operates from –40 °C up to +100 °C ambient temperature.
