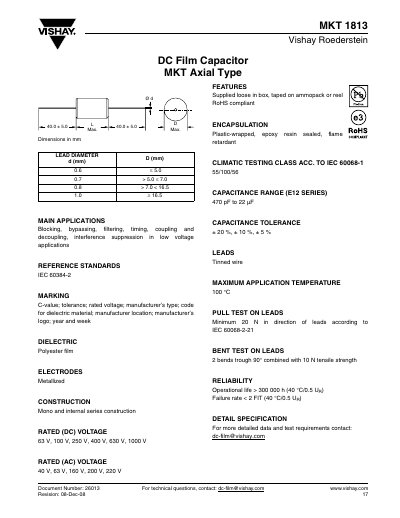

MKT 1813 Vishay Roederstein DC Film Capacitor MKT Axial Type is a type of resistor capacitor produced by Vishay Roederstein. It has applications such as blocking, bypassing, filtering, timing, coupling and decoupling, and interference suppression in low voltage applications.
The MKT 1813 is a DC film capacitor with an axial lead configuration, intended for blocking, bypassing, filtering, timing, coupling, decoupling, and interference suppression in low‑voltage circuits. It is supplied loose, on ammopack, or reel and complies with RoHS.
Key characteristics include polyester film dielectric, rated DC voltages from 63 V to 1000 V, AC voltages up to 220 V, capacitance values from 470 pF to 22 µF, and a maximum operating temperature of 100 °C. Reliability data show an operational life exceeding 300 000 h and a failure rate below 2 FIT.
| Rated DC Voltage | 63 V, 100 V, 250 V, 400 V, 630 V, 1000 V |
|---|---|
| Rated AC Voltage | 40 V, 63 V, 160 V, 200 V, 220 V |
| Capacitance Range | 470 pF to 22 µF |
| Capacitance Tolerance | ±20 %, ±10 %, ±5 % |
| Maximum Application Temperature | 100 °C |
| Operational Life | >300 000 h (40 °C/0.5 UR) |
| Failure Rate | <2 FIT (40 °C/0.5 UR) |
| Dielectric | Polyester film |
| Encapsulation | Plastic‑wrapped, epoxy resin sealed, flame retardant |
| RoHS Compliance | Yes |
It is used for blocking, bypassing, filtering, timing, coupling and decoupling, and interference suppression in low‑voltage applications.
Yes, the capacitor is RoHS compliant.
The maximum application temperature is 100 °C.
Rated DC voltages of 63 V, 100 V, 250 V, 400 V, 630 V and 1000 V, and AC voltages of 40 V, 63 V, 160 V, 200 V and 220 V are offered.
