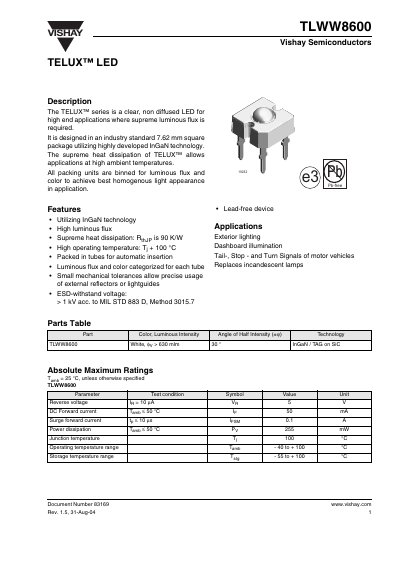

This document describes the features and characteristics of VISHAY TLWW8600 TELUX™ LED, including high luminous flux, excellent heat dissipation, and suitability for high ambient temperatures.
The TLWW8600 is a clear, non‑diffused TELUX™ series LED designed in a 7.62 mm square package using advanced InGaN technology. It offers high luminous flux, excellent heat dissipation (RthJP = 90 K/W) and can operate at junction temperatures up to 100 °C, making it suitable for demanding automotive and exterior lighting applications.
Key electrical and optical characteristics include a forward voltage of 4.3 V to 5.2 V at 50 mA, reverse voltage rating of 10 µA, power dissipation of 255 mW, and a luminous flux of 630 – 1000 mlm. The device is lead‑free, ESD‑withstand >1 kV, and is packaged in tubes for automatic insertion.
Typical applications are exterior lighting, dashboard illumination, and tail‑, stop‑ and turn‑signal lamps for motor vehicles. The datasheet also contains thermal resistance data, package dimensions, and an ozone‑depleting substances policy statement.
| Luminous flux (φV) | 630 – 1000 mlm |
|---|---|
| Forward voltage (VF) | 4.3 – 5.2 V |
| Power dissipation (PV) | 255 mW |
| Junction temperature (Tj) | 100 °C |
| Thermal resistance junction‑to‑pin (RthJP) | 90 K/W |
| Operating temperature range | -40 °C to +100 °C |
| Storage temperature range | -55 °C to +100 °C |
| Color temperature | 5500 K |
| ESD withstand voltage | >1 kV |
The forward voltage is between 4.3 V and 5.2 V at a forward current of 50 mA.
The thermal resistance junction‑to‑pin (RthJP) is 90 K/W.
It is intended for exterior lighting, dashboard illumination, and tail‑, stop‑ and turn‑signal lamps of motor vehicles.
