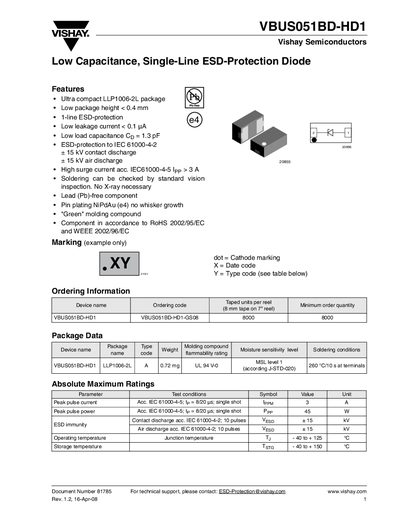

VBUS051BD-HD1 is a ultra compact, low leakage current ESD protection diode with a package height less than 0.4 mm, reaching ESD protection level of IEC 61000-4-2 ± 15 kV contact discharge and ± 15 kV air discharge.
The VBUS051BD‑HD1 is a low‑capacitance, single‑line ESD‑protection diode designed for high‑frequency data lines such as USB 2.0 and HDMI. It offers ultra‑compact LLP1006‑2L packaging, a low leakage current (< 0.1 µA), and a load capacitance of 1.3 pF, making it suitable for high‑speed applications.
The device meets IEC 61000‑4‑2/‑4‑5 standards for contact and air discharge (up to 15 kV) and can handle surge currents greater than 3 A. It is RoHS‑compliant, lead‑free, and features NiPdAu pin plating. Detailed electrical characteristics, package dimensions, and ordering information are provided for designers.
| Low leakage current | < 0.1 µA |
|---|---|
| Load capacitance (Cp) | 1.3 pF |
| Surge current (Ipp) | > 3 A |
| Package height | < 0.4 mm |
| Pin plating | NiPdAu |
| Moisture Sensitivity Level | 1 |
The device can handle a surge current greater than 3 A according to IEC 61000‑4‑5.
The line capacitance is specified as 1.3 pF.
It is supplied in an ultra‑compact LLP1006‑2L package.
Yes, the component is lead‑free and complies with RoHS 2002/95/EC.
