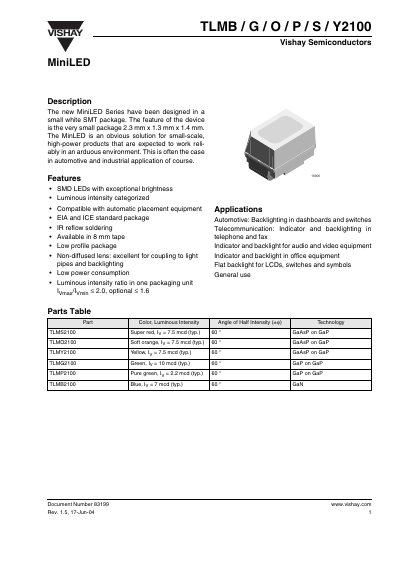

The document describes the features and characteristics of the VISHAY TLMB / G / O / P / S / Y2100 MiniLED series, including its small package, exceptional brightness, low power consumption, etc. It is suitable for automotive, industrial, and telecommunications applications.
The YTLMB/G/O/P/S/Y2100 MiniLED series from Vishay is offered in a very small white SMT package (2.3 mm × 1.3 mm × 1.4 mm). It is intended for high‑power, small‑scale applications such as automotive dashboards, telecommunication indicators, and backlighting for LCDs.
The document lists electrical and optical characteristics, absolute maximum ratings, package and reel dimensions, storage and handling guidelines, and recommended reflow soldering and cleaning procedures. It also includes a policy statement on ozone‑depleting substances.
| Package size | 2.3 mm x 1.3 mm x 1.4 mm |
|---|---|
| Reverse voltage (VR) | 5 V DC |
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 to +100 °C |
A solder paste containing 63 % Sn and 37 % Pb is recommended.
Store at 10 °C to 30 °C with humidity ≤ 60 % RH.
The maximum reverse voltage is 5 V DC (6 V for some variants).
