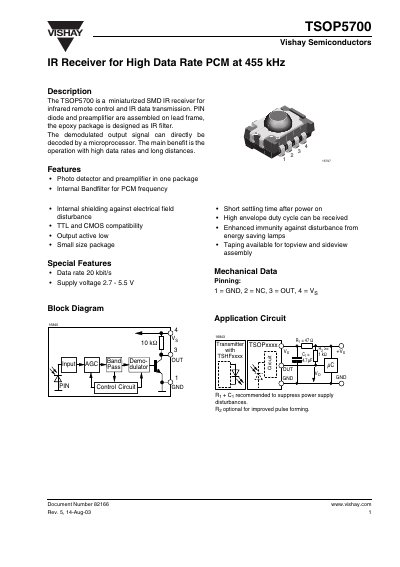

The TSOP5700 is a miniaturized SMD IR receiver for infrared remote control and IR data transmission. It operates at high data rates and long distances.
The TSOP5700 is a miniaturized SMD infrared receiver designed for remote‑control and data‑transmission applications. It integrates a photodiode and preamplifier in a single package, offers TTL and CMOS compatibility, and operates with high data rates up to 20 kbit/s over long distances.
The document lists detailed electrical parameters, recommended data formats, mechanical dimensions, packaging, and storage instructions. It also includes environmental compliance information and handling precautions for moisture and ESD sensitivity.
| Supply Voltage | 2.7 – 5.5 V |
|---|---|
| Supply Current | 5 mA |
| Output Current | 15 mA |
| Operating Temperature Range | -25 °C to +85 °C |
| Data Rate | 20 kbit/s |
The device operates with a supply voltage between 2.7 V and 5.5 V.
The maximum output current is 15 mA.
Store the device in a dry box at 10 °C to 30 °C with humidity ≤ 60 % RH.
