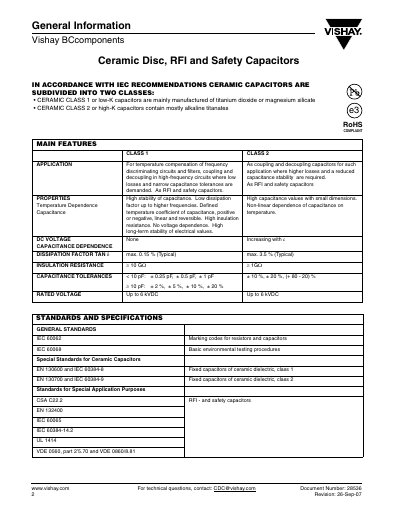

This data sheet lists Vishay BCcomponents' ceramic disc, RFI and safety capacitors' specifications.
The document presents detailed information on Vishay ceramic disc, RFI and safety capacitors, covering their classification, main features, electrical properties, and applicable standards. It includes tables for capacitance coding, tolerance codes, temperature characteristics, and packaging options.
Additional sections describe recommended storage conditions, soldering procedures, cleaning methods, reliability data, and measurement guidelines, helping designers and manufacturers handle the components safely and reliably.
| Dissipation factor (tan δ) | 0.15% (Typical) |
|---|---|
| Insulation resistance | ≥ 10 GΩ (Class 1) |
| Rated voltage | Up to 6 kVDC |
| Capacitance tolerance (< 10 pF) | ±0.25 pF, ±0.5 pF, ±1 pF |
Soldering temperature should be 235 ± 5 °C for 2 ± 0.5 s (lead) or 260 ± 5 °C for 10 ± 1 s (body).
Clean the components immediately after soldering using vapor degreasers.
