TEMD7000X01 is a high speed and high sensitive PIN photodiode. It is a miniature surface mount device (SMD) including the chip with a 0.23 mm2 sensitive area detecting visible and near infrared radiation.
The Vishay TEMD7000X01 is a miniature surface‑mount silicon PIN photodiode designed for high‑speed and high‑sensitivity detection of visible and near‑infrared radiation. It features a 0.23 mm² active area, fast response times, and compliance with automotive‑grade standards.

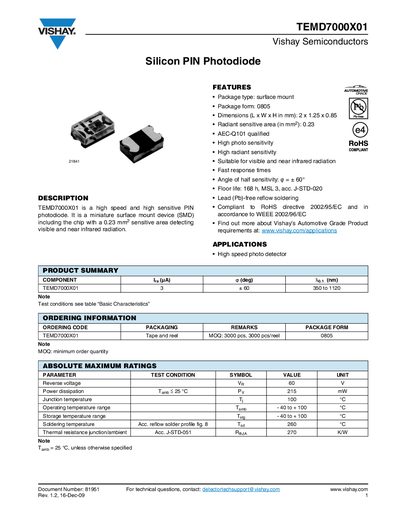

The document provides detailed electrical characteristics, absolute maximum ratings, packaging dimensions, and handling instructions, including reflow solder profiles and moisture‑sensitivity guidelines.
| Package type | surface mount |
|---|---|
| Package form | 0805 |
| Dimensions (L×W×H) | 2 x 1.25 x 0.85 mm |
| Radiant sensitive area | 0.23 mm² |
| Reverse voltage (Vr) | 60 V |
| Junction temperature (Tj) | 100 °C |
| Operating temperature range | -40 to +100 °C |
The TEMD7000X01 uses a surface‑mount package.
The device is rated for a reverse voltage of 60 V.
It operates from –40 °C to +100 °C.
