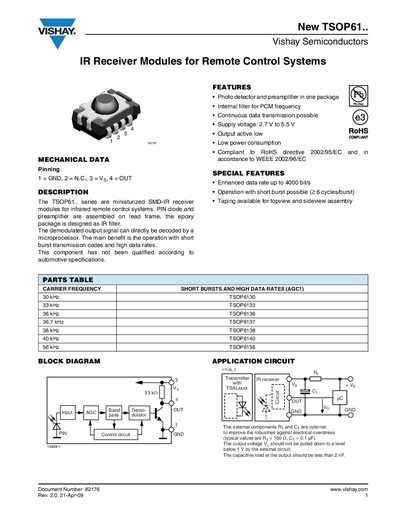

The TSOP61 series are miniaturized SMD-IR receiver modules for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the operation with short burst transmission codes and high data rates. This component has not been qualified according to automotive specifications.
The TSOP61.. series are miniaturized SMD IR receiver modules designed for remote‑control systems. Each device integrates a photodiode, preamplifier and an internal IR filter, delivering a demodulated output that can be read directly by a microprocessor.
The document lists mechanical dimensions, pin assignments, absolute maximum ratings, electrical and optical characteristics, recommended data formats, and detailed reflow soldering profiles for reliable assembly.
| Supply voltage | 2.7 V to 5.5 V |
|---|---|
| Maximum data rate | 4000 bit/s |
| Carrier frequency (TSOP6130) | 30 kHz |
| Output type | Active low |
| Operating temperature range | -25 °C to +85 °C |
The modules operate with a supply voltage from 2.7 V to 5.5 V.
The series supports data rates up to 4000 bit/s.
Reflow must be performed with the device surface temperature below 260 °C.
A minimum burst length of 6 cycles per burst is required.
