PHL 16/ 5-15 is a PC terminal block from PHOENIX CONTACT with a rated voltage of 1000 V, a pitch of 15 mm, 5 positions, spring-cage connection type, soldering assembly, conductor/PCB connection direction of 0°, and green color.
The PLH 16/5-15 is a Phoenix Contact terminal block rated for 1000 V, with a 15 mm pitch and five spring‑cage positions. It is supplied in a green housing and is designed for soldered PCB assembly.

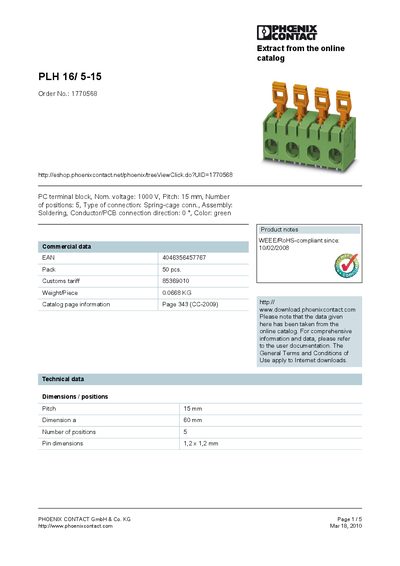

The sheet provides detailed technical data such as pin dimensions, weight, EAN code, and compliance information, along with ordering details (Order No. 1770568) and a drilling plan for PCB layout. Additional drawings and contact information for Phoenix Contact are included.
| Nominal voltage | 1000 V |
|---|---|
| Pitch | 15 mm |
| Number of positions | 5 |
| Pin dimensions | 1.2x1.2 mm |
| Color | green |
| Weight per piece | 0.0668 KG |
| Pack size | 50 pcs. |
| EAN | 4046356457767 |
The PLH 16/5-15 is rated for a nominal voltage of 1000 V.
It has five positions.
The pitch is 15 mm.
Order No. 1770568 can be used to order the part via the Phoenix Contact e‑shop.
