MC 1,5 / 6-STF-3,81 is a plug component with 8A rated current, 160V rated voltage, 3.81 pitch, 6 positions, screw connection, green color, produced by PHOENIX CONTACT.
The MC 1,5/6-STF-3,81 is a green screw‑connection terminal block with a 3.81 mm pitch and six positions. It is designed for direct mounting or press‑in installation and is rated for 8 A nominal current at 160 V nominal voltage.

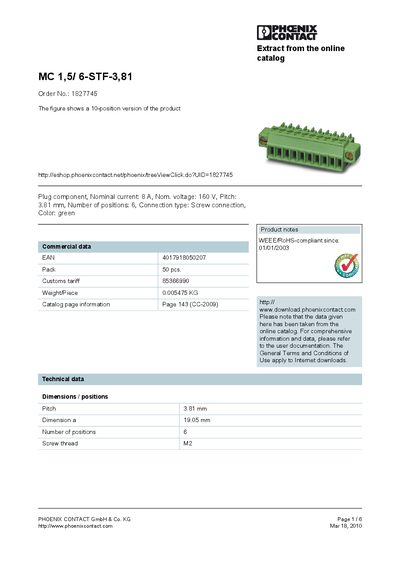

The leaflet lists detailed technical specifications such as tightening torque, surge voltage ratings, and conductor cross‑section ranges, as well as accessories like marker cards, screwdriver tools and compatible headers. Certification information (CB, CSA, CUL, UL, VDE‑PZI) and packaging details are also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 6 |
| Color | green |
| Weight per piece | 0.005475 kg |
The terminal block is rated for a nominal current of 8 A.
The pitch of the terminal block is 3.81 mm.
It has six positions.
The tightening torque ranges from 0.22 Nm to 0.25 Nm.
