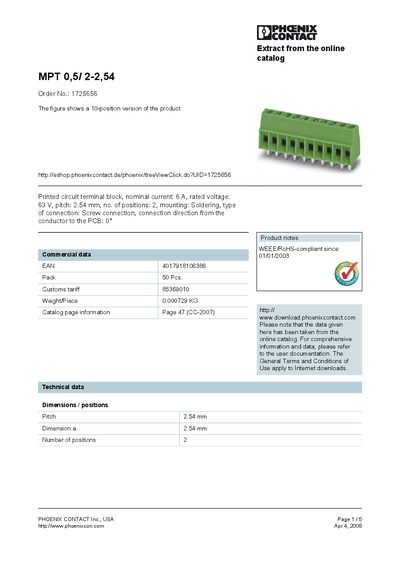

MPT 0,5/ 2-2,54 is a printed circuit terminal block produced by PHOENIX CONTACT, with a rated current of 6 A, a rated voltage of 63 V, a pitch of 2.54 mm, 2 positions, a mounting method of soldering, a connection method of screw connection, and a connection direction from the conductor to the PCB of 0°.
The MPT 0,5/2-2,54 is a printed circuit terminal block designed for soldered mounting with a screw connection. It provides a 2‑position layout with a 2.54 mm pitch and is suitable for nominal currents up to 6 A at 63 V.
The sheet lists detailed technical specifications such as surge voltage ratings, dimensions, and approved certifications (CSA, CUL, GOST, UL). It also includes accessory part numbers, drawing diagrams for drilling, and contact information for Phoenix Contact.
| Nominal current | 6 A |
|---|---|
| Rated voltage | 63 V |
| Pitch | 2.54 mm |
| Number of positions | 2 |
| Mounting | Soldering |
| Connection type | Screw connection |
The nominal current rating is 6 A.
The pitch is 2.54 mm.
It has 2 positions.
It is certified by CSA, CUL, GOST, and UL.
