This document is about the SMKDSN 1,5/ 9-5,08 product produced by PHOENIX CONTACT GmbH & Co. KG. The product is a 9-position connector with a rated current of 13.5 A, a rated voltage of 250 V, a pitch of 5.08 mm and a green color.

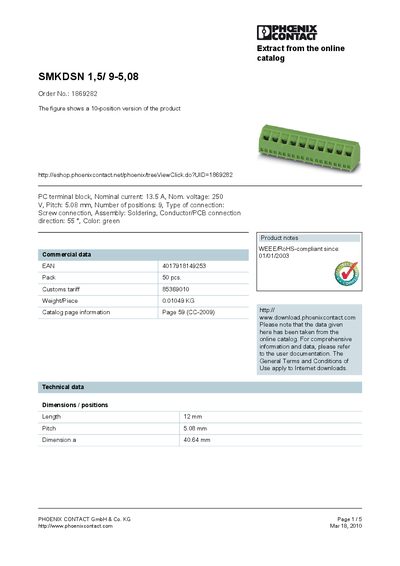

This datasheet describes the SMKDSN 1,5/9-5,08 terminal block from Phoenix Contact. It lists the nominal current of 13.5 A, nominal voltage of 250 V, a 5.08 mm pitch, and a 9‑position configuration (a 10‑position version is shown in the figure). Technical dimensions such as a 12 mm length and 40.64 mm overall width are included.
Additional information covers weight, packaging, certifications (CSA, CUL, UL, etc.), and available accessories like marker pens and labeling cards. The document also provides tightening torque values and conductor cross‑section ranges for both solid and stranded wires.
| Nominal current | 13.5 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 9 |
| Length | 12 mm |
| Overall width (dimension a) | 40.64 mm |
| Weight per piece | 0.01049 kg |
| EAN | 4017918149253 |
The terminal block is rated for a nominal current of 13.5 A.
It has 9 positions, although the figure in the document shows a 10‑position version.
