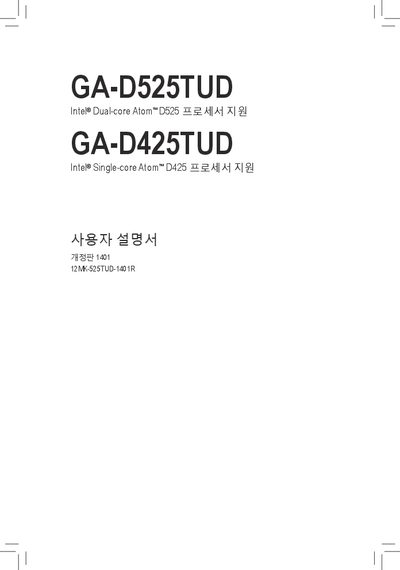

GA-D525TUD/GA-D425TUD motherboard user manual, introduces the information on hardware installation and BIOS setup.
This manual covers the GA-D525TUD and GA-D425TUD motherboards, detailing the basic and optional components, board layout, and block diagram. It guides users through hardware installation, including CPU, memory, storage, and peripheral connections.
Later sections describe BIOS configuration, driver installation, unique Gigabyte features such as Xpress Recovery and Q-Flash, and an appendix with SATA, audio, and networking setup, plus contact information for technical support. This manual is written in Korean.
| CPU | Intel Dual‑core Atom D525 / Intel Single‑core Atom D425 (1.8 GHz) |
|---|---|
| Chipset | Intel NM10 |
| Audio Codec | Realtek ALC887, 2/4/5.1/7.1‑channel HD audio |
| LAN | Realtek GbE LAN 10/100/1000 Mbit |
| SATA | 2 × SATA 3Gb/s ports, RAID 0/1 and JBOD support |
| USB | Up to 8 USB 2.0/1.1 ports (4 rear, 4 via internal header) |
The board supports Intel Dual‑core Atom D525 and Intel Single‑core Atom D425 processors (1.8 GHz).
It provides up to eight USB 2.0/1.1 ports – four on the rear panel and four via an internal header.
A Realtek ALC887 codec is integrated, supporting 2‑, 4‑, 5.1‑ and 7.1‑channel HD audio.
Two SATA 3 Gb/s ports are available, supporting RAID 0, RAID 1 and JBOD configurations.
