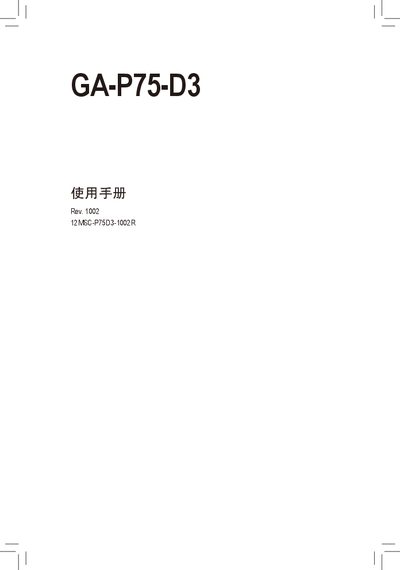

This document is the user manual for the GA-P75-D3 motherboard, which introduces the hardware installation, BIOS program settings, driver installation, and unique features of the motherboard.
This manual explains how to install and configure the Gigabyte GA-P75-D3 motherboard. It covers safety precautions, CPU and memory installation, expansion card mounting, and connector descriptions.
Subsequent chapters detail BIOS configuration, driver installation, special features such as Xpress Recovery2 and Q‑Flash, and an appendix with audio settings, troubleshooting tips, and warranty information. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Audio codec | Realtek ALC887 |
| Network controller | Realtek GbE LAN 10/100/1000 Mbit |
| PCI Express slots | 1 x16 (full‑speed), 1 x16 (x4), 1 x1, 4 PCI slots |
It has four DDR3 DIMM slots that can support up to 32 GB of memory.
The motherboard uses an LGA1155 socket for compatible Intel processors.
You can update the BIOS using Q‑Flash (BIOS quick refresh) or the @BIOS online update utility as described in Chapter 4.
Warranty details and service contacts are provided in the appendix section titled “技嘉主板售后服务及质量保证卡”.
