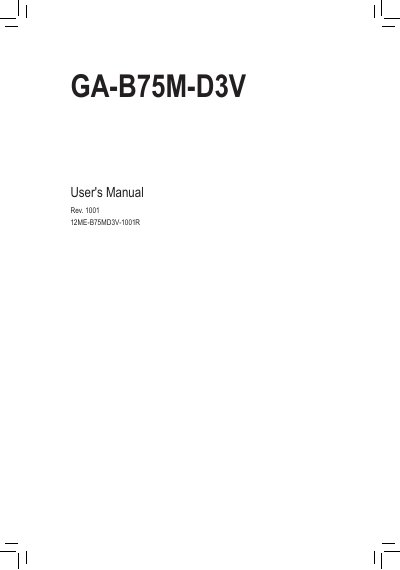

Gigabyte GA-B75M-D3V Motherboard User Manual

GA-B75M-D3V motherboard user's manual, introducing the hardware installation and BIOS settings of the motherboard

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: English
Pages: 40
File format: PDF
File size: 14.8 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-B75M-D3V
MD5 checksum: F3007BE855F052490E58357A1B909695
PDF: Gigabyte GA-B75M-D3V Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the Gigabyte GA‑B75M‑D3V motherboard. It includes hardware installation procedures for the CPU, memory, and expansion cards, as well as detailed diagrams of the board layout and block diagram.

The document also lists the technical specifications, BIOS features, and driver installation guidance, and it contains regulatory and safety information for end users and technicians.

What's inside

Motherboard Layout
Motherboard Block Diagram
Hardware Installation
Product Specifications
BIOS Setup
Drivers Installation
Regulatory Statements

Specifications

Chipset	Intel B75 Express
Memory Capacity	Up to 16 GB DDR3
SATA Ports	1 x SATA 6 Gb/s, 5 x SATA 3 Gb/s
USB Ports	Up to 4 USB 3.0/2.0 and 8 USB 2.0/1.1
LAN Controller	Atheros GbE (10/100/1000 Mbit)
Onboard Graphics	1 x D‑Sub, 1 x DVI‑D (max 1920×1200)

Frequently asked questions

How many USB 3.0 ports are provided on the GA‑B75M‑D3V?

The board provides up to four USB 3.0/2.0 ports—two on the back panel and two via internal headers.

What is the maximum memory supported by this motherboard?

It supports up to 16 GB of DDR3 memory across two DIMM slots.

Which LAN controller is integrated on the GA‑B75M‑D3V?

An Atheros Gigabit Ethernet controller (10/100/1000 Mbit) is built in.
