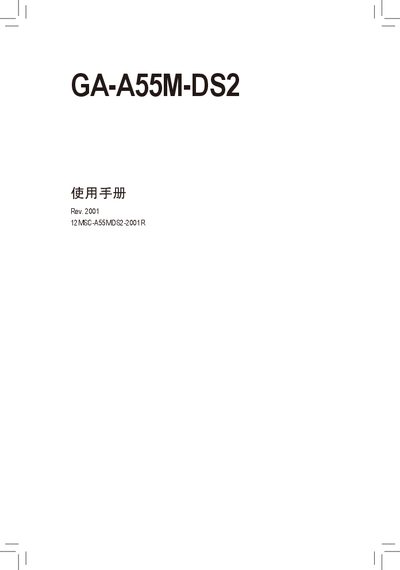

GA-A55M-DS2 User Manual is a user manual for Gigabyte GA-A55M-DS2 motherboard, which mainly introduces the hardware installation, BIOS program settings and driver installation.
This manual explains how to install and configure the GA‑A55M‑DS2 motherboard. It covers safety precautions, hardware installation steps, processor and memory installation, and connector wiring.
The document also details BIOS settings, driver installation, system utilities, and includes an appendix with specifications, warranty information, and a parts list. This manual is written in Chinese.
| Processor socket | FM1 |
|---|---|
| Chipset | AMD A55 |
| Memory slots | 2 DDR3 DIMM slots |
| Maximum memory | 32 GB |
| Supported DDR3 speeds | 1866/1600/1333/1066 MHz |
| SATA ports | 4 SATA 3 Gb/s ports |
| USB ports | 8 USB 2.0/1.1 ports |
| Network controller | Realtek/Atheros GbE 10/100/1000 Mbit |
The motherboard provides two DDR3 DIMM slots that together support up to 32 GB of memory.
It uses an FM1 socket that supports AMD A‑series and E2‑series processors.
The board includes four SATA 3 Gb/s connectors for storage devices.
