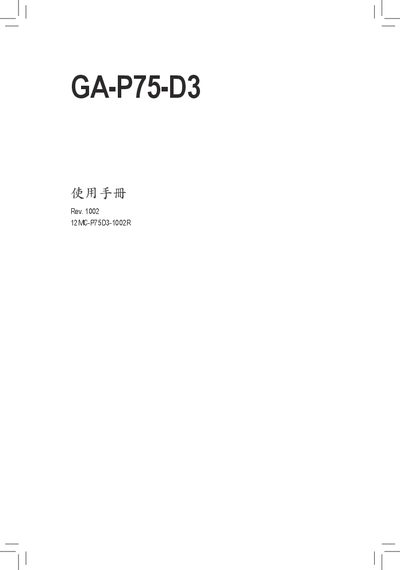

GA-P75-D3 motherboard user manual, introducing the hardware installation and BIOS settings of the motherboard
This manual covers the GA-P75-D3 motherboard’s safety certifications, included accessories, and overall specifications. It lists the required safety standards such as EN 55022, EN 55024, EN 55014.1 and others, and provides the FCC compliance declaration.
The guide walks users through installing the CPU, memory, cooling fan, and other components, explains BIOS setup options, audio and USB configuration, and offers troubleshooting tips and contact information for technical support. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported memory | DDR3 1600 MHz |
| PCI Express slots | x16, x4, x1 |
| PCI Express x4 slot | Present |
| PCI Express x1 slot | Present |
| SATA ports | SATA 6 Gb/s and SATA 3 Gb/s |
| Audio output | SPDIF Out |
| Legacy ports | PS/2 keyboard/mouse |
It complies with EN 55022, EN 55024, EN 55014.1, EN 55015, EN 56044.2, EN 60335 and other relevant standards.
The board supports DDR3 memory up to 1600 MHz.
It has one PCI Express x16 slot, one PCI Express x4 slot, and one PCI Express x1 slot.
The motherboard uses an LGA1155 socket.
