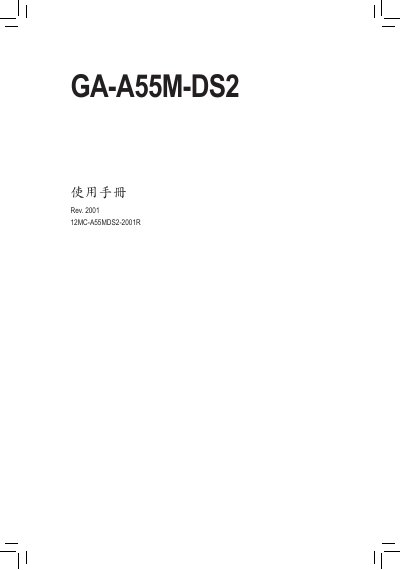

GA-A55M-DS2 motherboard user manual, introducing the hardware installation, BIOS configuration settings, driver installation and other content
This manual provides step‑by‑step hardware installation instructions, safety warnings and BIOS configuration guidance for the Gigabyte GA‑A55M‑DS2 motherboard. It also lists the supported processors, memory types and other key components.
The document includes detailed connector diagrams, power‑connector layouts, and a full specification table describing video outputs, audio, networking, storage and USB interfaces.
| Supported DDR3 speeds | 1866 MHz / 1600 MHz / 1333 MHz / 1066 MHz |
|---|---|
| Video outputs | 1 D‑Sub port, 1 DVI‑D port (max 1920×1200) |
It includes one D‑Sub port and one DVI‑D port that can drive up to 1920×1200 resolution.
