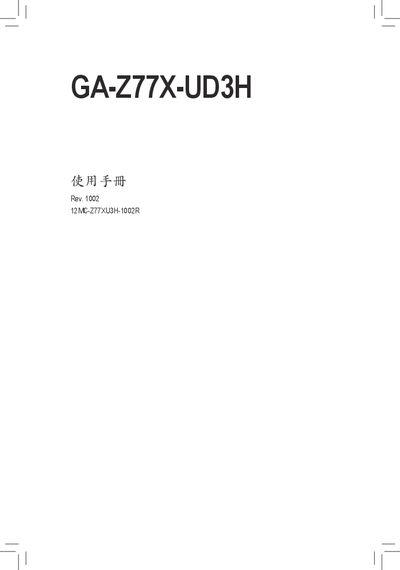

Gigabyte GA-Z77X-UD3H Motherboard User Manual

This is the user manual of GA-Z77X-UD3H motherboard, includes hardware installation, BIOS configuration, driver installation and unique function introduction.

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 124
File format: PDF
File size: 38.6 MB
Published: 11 May, 2012
Updated: 30 September, 2023
Model: GA-Z77X-UD3H
MD5 checksum: F5B99914B83F2015F9F7263548872583
PDF: Gigabyte GA-Z77X-UD3H Motherboard User Manual PDF

About this manual

This manual guides users through the setup and operation of the Gigabyte GA-Z77X-UD3H motherboard. It includes safety notices, FCC and CE compliance information, and a checklist of supplied accessories.

Key sections cover pre‑installation checks, CPU and cooler installation, BIOS configuration, SATA and USB setup, Xpress Recovery, EasyTune, driver installation, and troubleshooting. Appendices list contact information for Gigabyte support worldwide. This manual is written in Chinese.

What's inside

Accessories Checklist
Pre‑Installation
Product Specifications
CPU and Cooler Installation
BIOS Configuration
Xpress Recovery
BIOS Update (Q‑Flash)
SATA Configuration
Troubleshooting
Appendix

Specifications

CPU Socket	LGA1155
Supported Memory	DDR3 1600/1333/1066 MHz
USB Ports	4 USB 3.0/2.0
SATA Ports	2 SATA 6 Gb/s

Frequently asked questions

Which CPU socket does the GA‑Z77X‑UD3H use?

It uses an LGA1155 socket.

How many USB 3.0 ports are provided?

The board provides four USB 3.0 ports.

What type of memory is supported?

It supports DDR3 memory at 1600, 1333, or 1066 MHz.

Download PDF (38.6 MB)
