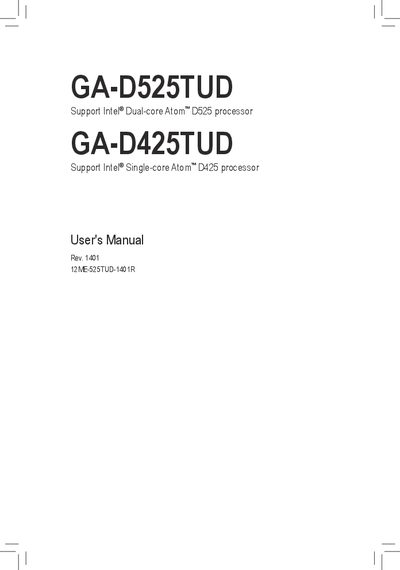

GA-D525TUD/GA-D425TUD Motherboard User's Manual, introduces the use of the motherboard and notes, as well as how to update the motherboard BIOS, driver and other information
This manual provides detailed instructions for installing and configuring the Gigabyte GA-D525TUD and GA-D425TUD motherboards. It includes hardware installation steps, BIOS setup options, driver installation procedures, and a description of unique features such as Xpress Recovery and EasyTune.
The document also lists technical specifications, safety precautions, and troubleshooting guidance, along with contact information for Gigabyte support worldwide.
| CPU | Intel Dual-core Atom D525 (GA-D525TUD) / Intel Single-core Atom D425 (GA-D425TUD) |
|---|---|
| Chipset | Intel NM10 |
| Memory | 2 x DDR3 DIMM sockets, up to 4 GB DDR3‑800 MHz |
| Audio Codec | Realtek ALC887 codec |
| LAN | Realtek GbE LAN (10/100/1000 Mbit) |
| Expansion Slots | 1 x PCI slot |
| SATA Ports | 2 x SATA 3 Gb/s connectors |
| IDE Connector | 1 x IDE connector (ATA‑133/100/66/33) |
| USB Ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 via internal headers) |
GA-D525TUD supports an Intel Dual‑core Atom D525 processor, while GA-D425TUD supports an Intel Single‑core Atom D425 processor.
The motherboard provides up to eight USB 2.0/1.1 ports – four on the back panel and four via internal USB headers.
It supports DDR3 memory up to 4 GB across two 1.5 V DDR3 DIMM slots, running at 800 MHz.
