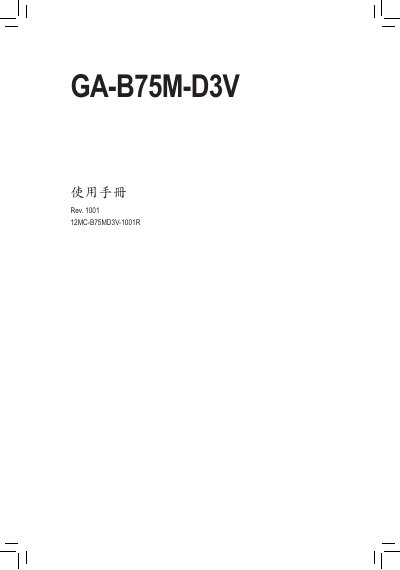

This manual covers the GA-B75M-D3V motherboard, detailing its layout, supported CPUs, memory configurations, and expansion slots. It includes step‑by‑step instructions for BIOS settings, power management, and peripheral connections.
Compliance and safety information, as well as regulatory declarations for FCC, CE, and RoHS, are also provided. The document is intended for end users and system builders who need to install, configure, and maintain the board.
| CPU Socket | LGA1155 |
|---|---|
| Supported Memory | DDR3 1600/1333/1066 MHz |
| Chipset | Intel B75 Express |
| PCI Express x16 Slots | 1 |
| PCI Express x1 Slots | 2 |
| SATA Ports | 6 Gb/s (SATA 6Gb/s) |
| LAN Interface | Atheros GbE 10/100/1000 Mbit |
It uses an LGA1155 socket for Intel Ivy Bridge and Sandy Bridge CPUs.
The board is built around the Intel B75 Express chipset.
The integrated Atheros GbE LAN supports 10/100/1000 Mbit speeds.
