DFK-PC 4/ 3-GF-7,62 is a green plug component produced by PHOENIX CONTACT with a rated current of 20 A and a rated voltage of 400 V. It is directly mounted.

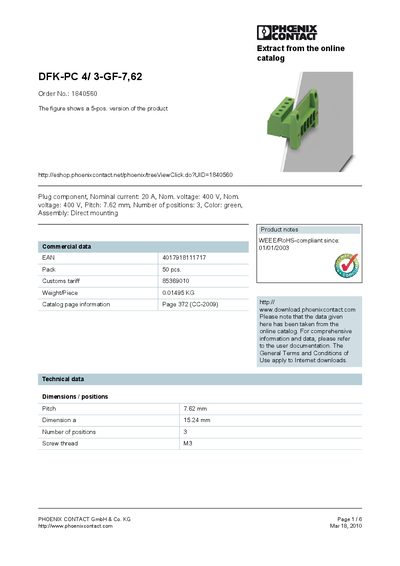

This document provides the technical specifications for the Phoenix Contact DFK‑PC 4/3‑GF‑7,62 plug component. It lists electrical ratings, mechanical dimensions, material information, and approved certifications.
Additional information includes part numbers for accessories, marking details, and a dimensioned drawing. Contact and address details for Phoenix Contact are also provided.
| Nominal current | 20 A |
|---|---|
| Nominal voltage | 400 V |
| Pitch | 7.62 mm |
| Number of positions | 3 |
| Color | green |
| Weight per piece | 0.01495 KG |
| Pack size | 50 pcs |
| Screw thread | M3 |
The nominal current rating is 20 A.
The pitch is 7.62 mm.
It has three positions.
The recommended tightening torque is between 0.5 Nm (minimum) and 0.6 Nm (maximum).
