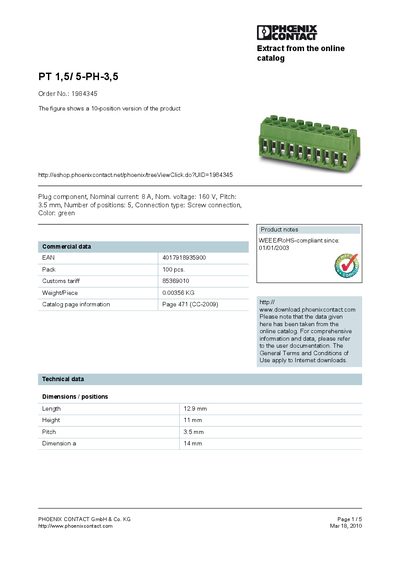

PT 1,5 / 5-PH-3,5 is a plug component produced by PHOENIX CONTACT. Its rated current is 8A, rated voltage is 160V, pitch is 3.5mm, it has 5 connection points, connection type is screw connection, color is green.
The PT 1,5/5-PH-3,5 is a 5‑position screw‑terminal block from Phoenix Contact, designed for 8 A nominal current and 160 V nominal voltage with a 3.5 mm pitch. It is intended for use in control panels and wiring harnesses where reliable, compact connections are required.
Key data include a length of 12.9 mm, height of 11 mm, weight of 0.00356 kg per piece, and compliance with WEEE/RoHS regulations since 2003. The product carries certifications CCA, CUL, SEV and UL, and is available with various accessories such as a 0.4 × 2.5 mm screwdriver.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 5 |
| Connection type | Screw connection |
| Length | 12.9 mm |
| Height | 11 mm |
| Weight per piece | 0.00356 kg |
| WEEE/RoHS compliance | Since 01/01/2003 |
| Certifications | CCA, CUL, SEV, UL |
The terminal block is rated for a nominal current of 8 A.
It has five positions.
The pitch is 3.5 mm.
It is certified CCA, CUL, SEV, and UL.
