The product is a 5-tap silicon delay line that provides 5 equally spaced taps with delays ranging from 12ns to 250ns, with an accuracy of ±2ns or ±3%, whichever is greater. This product is offered in a standard 14-pin DIP, making it compatible with existing delay line products. Space-saving 8-pin DIPs and 16-pin SOICs are also available. Through the combination of a 100% silicon delay line and industry standard DIP and SOIC packaging, both enhanced performance and superior reliability over hybrid technology are achieved. In order to maintain complete pin compatibility, DIP packages are available with hybrid lead configurations. The product reproduces the input logic level at each tap after the fixed delay specified by the dash number in Table 1. The product is designed with both leading and trailing edge accuracy. Each tap is capable of driving 10μA of load. The operating voltage of the product is ±5V. The product operates stably and reliably in the temperature range of -40~85℃.

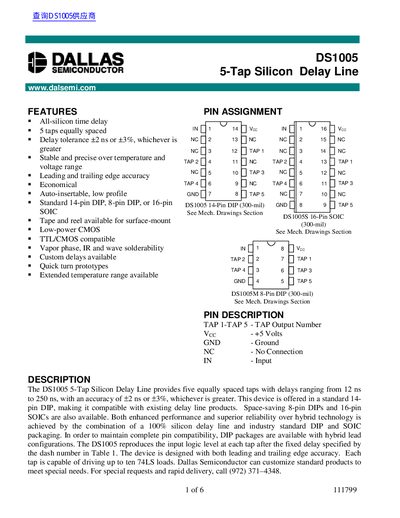

The DS1005 5‑Tap Silicon Delay Line provides five equally spaced taps with programmable delays ranging from 12 ns to 250 ns. It features stable performance over temperature, low‑power CMOS operation, and compatibility with TTL/CMOS logic levels. The device can drive up to ten 74LS loads per tap and is offered in standard 14‑pin DIP, 8‑pin DIP, and 16‑pin SOIC packages.
Electrical specifications include a typical supply voltage of 5 V, operating temperature from 0 °C to 70 °C, and input capacitance of 5‑10 pF. Absolute maximum ratings and detailed timing parameters are provided for design reference, along with test setup and conditions used to characterize the part.
| Number of taps | 5 |
|---|---|
| Delay range | 12 ns to 250 ns |
| Delay accuracy | ±2 ns or ±3 % |
| Supply voltage (typical) | 5.00 V |
| Input capacitance | 5 pF to 10 pF |
| Output drive capability | up to ten 74LS loads per tap |
The DS1005 provides selectable delays from 12 ns up to 250 ns.
It has five equally spaced taps.
The typical supply voltage is 5.00 V (range 4.75 V to 5.25 V).
