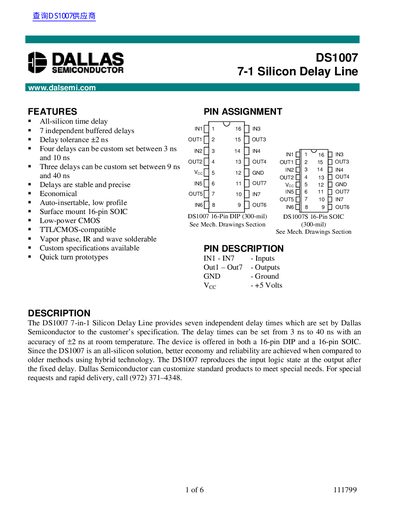

The DS1007 7-in-1 Silicon Delay Line is an all-silicon time delay with 7 independent buffered delays and a delay tolerance of ±2 ns. It can be custom set between 3 ns and 10 ns and between 9 ns and 40 ns. It is economical, auto-insertable, low profile, surface mount 16-pin SOIC, low-power CMOS, TTL/CMOS-compatible, and vapor phase, IR and wave solderable. Custom specifications are available and quick turn prototypes are available.
The DS1007 silicon delay line from Dallas Semiconductor provides seven independent buffered delays that can be customized between 3 ns and 40 ns with ±2 ns tolerance. It is offered in 16‑pin DIP and 16‑pin SOIC packages, is low‑power CMOS, TTL/CMOS‑compatible, and suitable for surface‑mount applications.
The device operates from a 5 V supply (typical 5.00 V), with input high voltage 2.2 V and low voltage 0.8 V. It can source a short‑circuit output current of 50 mA, active current up to 70 mA, and has absolute maximum ratings of –1 V to +7 V on any pin and an operating temperature range of 0 °C to 70 °C.
| Supply Voltage (VCC) typical | 5.00 V |
|---|---|
| High Level Input Voltage (VIH) typical | 2.2 V |
| Low Level Input Voltage (VIL) typical | 0.8 V |
| Short‑circuit Output Current | 50 mA for 1 s |
| Operating Temperature range | 0 °C to 70 °C |
| Storage Temperature range | -55 °C to +125 °C |
| Package options | 16‑pin DIP and 16‑pin SOIC |
It provides seven independent buffered delays.
The device tolerates –1 V to +7 V on any pin, short‑circuit output current of 50 mA for 1 s, and operates from 0 °C to 70 °C.
